Concrete / Material Handling
Tower Hoist & Winch
Now Vertical Shifting of Material is VERY MUCH EASY
| TECHNICAL DETAILS |
Tower Hoist & Winch |
| Power |
Powered by a Diesel Engine or an Electric Motor. Available in 10 HP and 15 HP |
| Gross Capacity |
600 Kgs |
| Maximum Height |
Up to 60 / 200 Ft. |
| Maximum Speed |
25/33 Mt./Min. |
| Column |
60 Ft. in 50 X 50 X 5 mm / 65 X 65 X 8 mm Cross Section |
| Skip Unit |
0.3 Cu.Mt. (With Safety Lock) |
| Wheels |
Pneumatic Wheels |
Concrete / Material Handling

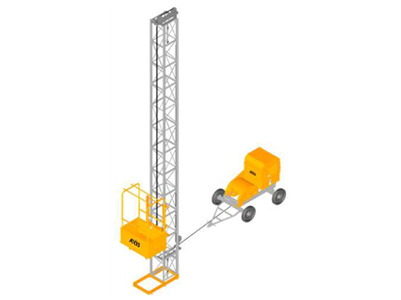

Multi - Go Hoist
Now Vertical Shifting of Material is VERY MUCH EASY
| TECHNICAL DETAILS |
MG 100 |
MG 150 |
MG 200 |
| Max. Travel Height |
30 Mtr |
100 Mtr |
100 Mtr |
| Travel Speed |
30 Mtr / Min |
30 Mtr / Min |
30 Mtr / Min |
| Load Carrying Capacity |
600 Kg |
600 Kg |
600 Kg |
| Column Size |
700 X 700 X 2700 |
700 X 700 X 2700 |
700 X 700 X 2700 |
| Column Angle Size |
50X50X5 mm |
50X50X6 mm |
65X65X6 mm |
| Power |
10 HP D/10 HPE |
12 HP (D)/15 HP (E) |
20 HP (D)/10 HP (E) |
| Diameter of Steel Rope |
10 mm |
12 mm |
12 mm |
| Brake |
Friction Roller Type |
Friction Roller Type |
Friction Roller Type |
| Attachments |
Material handling platform |
Material handling platform |
Material handling platform |
| Concrete carrying Bucket |
Concrete carrying Bucket |
Concrete carrying Bucket |
|
|
Four wheel trolly |
Concrete / Material Handling

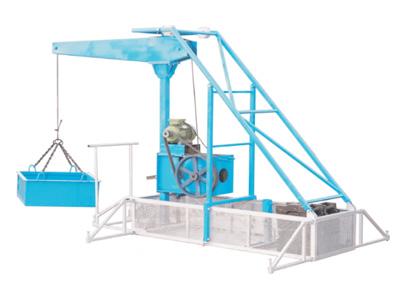

Mini Lift (Mini Crane)
Now Vertical Shifting of Material is VERY MUCH EASY
| TECHNICAL DETAILS |
Mini Lift (Mini Crane) |
| Motor |
3 HP 3 Phase Electrical Motor |
| Max. Speed |
26 Mt./Min |
| Gross Load Capacity |
300 Kgs |
| Bucket Weight |
50 Kgs |
| Transportable Weight |
250 Kgs |
| Max. Operating Height |
30 Mt |
| Effective Boom Length |
1000 mm (From Slab) |
| Wire Rope |
8 mm Diameter |
